 2004 3880 - Port Toggle Switches
 New Topic |   New Poll New Poll |   Reply to Topic |
Author Previous Topic: alarm sounds when we accelerate to 2000 RPMs Topic Next Topic: Regal Decals

OUV11112

RO# 28921

Posted - Jun 29 2011 :  12:07:15  Show Profile  Reply with Quote
There are no labels on my dash toggle switches. Does anyone have a close up picture or copy of the schematic? In my owners manual it does not have this for the 3880.

Homeport: Port Dover, Ontario

rommer

RO# 12280



Posted - Jun 29 2011 :  12:23:08  Show Profile  Reply with Quote
I can get you a picture tomorrow when I'm at the boat.

Just did a quick Google search and i found that there are 2 different switch layouts. Did you have 1 single row on the port side of the helm or 2 rows? (I have 2 rows)



Boats, yup, 5 of em...
WLC - We love Champlin's!

Homeport: Liberty Landing Marina, NJ Go to Top of Page

OUV11112

RO# 28921

Posted - Jun 29 2011 :  12:59:24  Show Profile  Reply with Quote
Two rows John. Thanks!


Homeport: Port Dover, Ontario Go to Top of Page

CurrentSea

RO# 10265



Posted - Jun 29 2011 :  13:41:10  Show Profile  Reply with Quote
They can't all be the same, becuase not all boats have NeutraSalt, which I do.

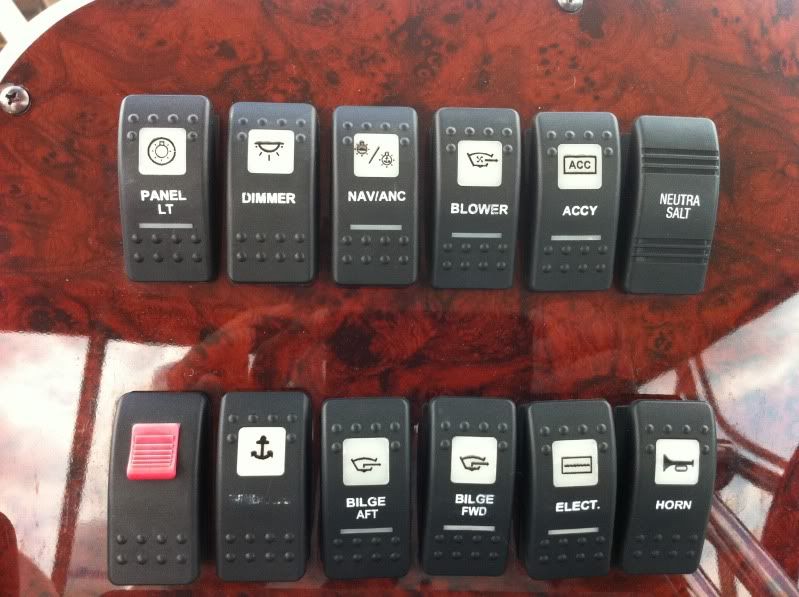

Either way, here are mine.
The second row second switch from left is Windlass, first switch is Windlass on or off safety.





2009 Regal 4080
Volvo Diesel IPS

Homeport: Anchorage YC - Lindenhurst, NY Go to Top of Page

rommer

RO# 12280



Posted - Jun 29 2011 :  16:56:40  Show Profile  Reply with Quote
On other boats without the neutra salt switch it is marked as Accy 2.

I used it to wire blue LED lights into the bimini frame in the bridge. I used the Accy 1, marked accy in Dave's picture, to provide power to the camera I installed that lets me see the starboard side of the swim platform when I dock on that side.

The rest of your switches are wired the same as they are on the diesel version of the series.



Boats, yup, 5 of em...
WLC - We love Champlin's!

Homeport: Liberty Landing Marina, NJ Go to Top of Page

OUV11112

RO# 28921

Posted - Jun 30 2011 :  14:01:21  Show Profile  Reply with Quote
Thanks so much. It was the two Accy switched that I was confused about.

Where is the forward Bilge pump?I don't think I have seen it yet.

That burl wood dash sure looks better that than my plain beige one. One more project.



Homeport: Port Dover, Ontario Go to Top of Page

rommer

RO# 12280



Posted - Jun 30 2011 :  17:04:15  Show Profile  Reply with Quote
The physical location of the forward pump depends on the year of your boat. 2003 and older, the pump is located in the most forward part of the engine room in the center of the floor between the transmissions. 2004 and newer the pump is in the saloon down where the water pump is located. (I added one to the center area for my 2003 because it works much better there due to the slight forward pitch of the forward bilge.)




Boats, yup, 5 of em...
WLC - We love Champlin's!

Homeport: Liberty Landing Marina, NJ Go to Top of Page

gruube

RO# 28551

Posted - Sep 29 2011 :  17:10:12  Show Profile  Reply with Quote
The switch labeling on my 2001 2760 is also worn off. Where did you guys get the new toggles or labeling?


Homeport: baltimore MD Go to Top of Page
